Stainless steel turnbuckles are essential tensioning components used across marine, architectural, structural rigging and industrial hardware applications. Their corrosion resistance, mechanical strength and long service life make them a preferred choice over galvanized alternatives in environments where exposure to moisture, salt spray or chemicals is expected.
Why Stainless Steel for Turnbuckles?
The main reason buyers specify stainless steel turnbuckles is corrosion resistance. Unlike carbon or galvanized steel that can rust when the zinc coating is damaged, stainless steel forms a passive chromium oxide layer that self-repairs in oxygen-rich environments. This makes it suitable for:
- Marine and offshore – deck hardware, mooring lines, cable railings near seawater
- Architectural applications – facade systems, canopy supports, glass wall bracing where appearance matters
- Food processing and chemical plants – washdown areas, corrosive atmospheres
- Long-term outdoor installations – bridges, guardrails and structural cables with minimal maintenance access
We supply stainless steel turnbuckles in both standard and custom specifications for B2B projects requiring reliable performance under demanding conditions.
304 vs 316: Choosing the Right Grade
Two austenitic grades dominate the industrial turnbuckle market:
Type 304 / A2 (18/8)
The most widely used grade for general-purpose stainless steel turnbuckles. Offers good corrosion resistance in indoor, mild atmospheric and fresh water environments. Cost-effective for projects not exposed to chloride-heavy conditions.
Type 316 / A4 (Marine Grade)
Contains molybdenum (2–3%) which significantly improves resistance to pitting and crevice corrosion from chlorides. Required for marine environments, coastal installations, swimming pool areas and any application involving saltwater or de-icing salts. We help source 316-grade turnbuckles for projects where material certification is specified.
Note: Both grades are non-magnetic in the annealed state. Cold working during forming can introduce slight magnetism, which is normal and does not affect mechanical properties.
End Fitting Types for Stainless Steel Turnbuckles
The end fittings determine how the turnbuckle connects to wire rope, rod, chain or fixed anchor points. Common configurations include:
- Jaw and Jaw (J&J): Both ends use clevis jaws secured by cotter pins or bolts through a hole in the connecting link. Ideal for permanent connections to shackles, pad eyes or other pinned fittings.
- Eye and Eye (E&E): Loop-shaped ends that accept shackles, hooks or wire rope thimbles. Versatile for general rigging and temporary assemblies.
- Hook and Eye (H&E): One hook end and one eye end. Quick-connect design used in applications requiring frequent adjustment or disassembly, such as stage rigging and cable tensioning.
- Jaw and Eye (J&E): Combines a secure jaw end with a flexible eye end for mixed connection requirements.
We can help source custom end fitting configurations including stub ends, toggle terminals and swage-fitting combinations for specialized industrial metal hardware projects.
Key Industrial Applications
Stainless steel turnbuckles serve as critical tensioning devices across multiple sectors:
Cable Railing Systems

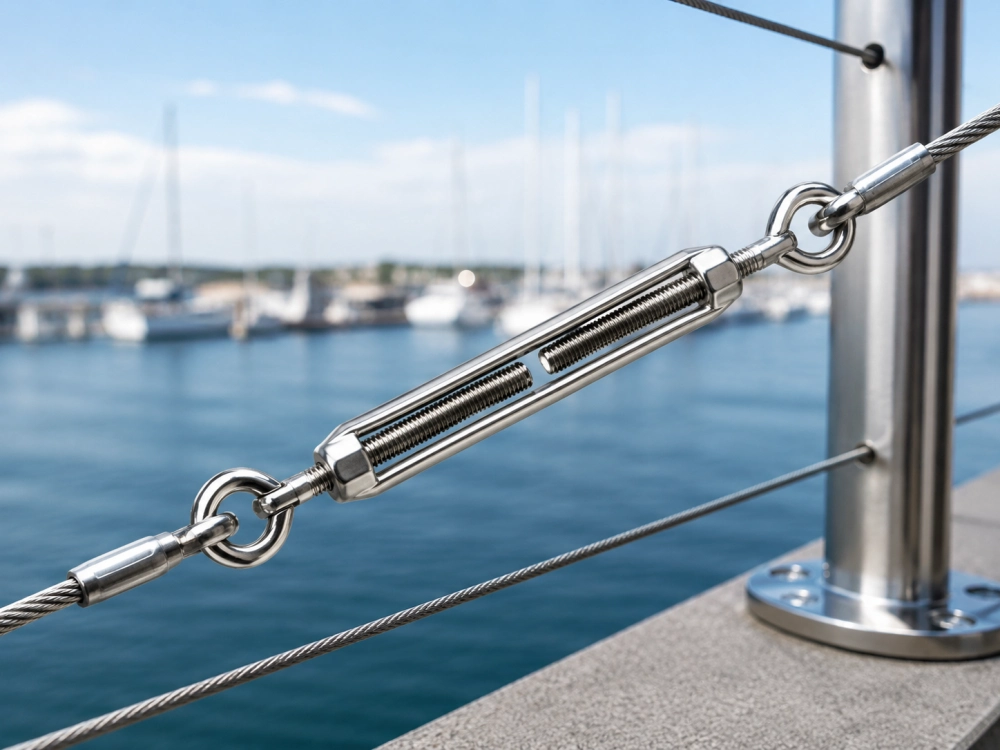

Architectural wire rope railing on decks, balconies, walkways and staircases relies on stainless steel turnbuckles to maintain proper cable tension while providing a clean, modern aesthetic. Type 316 is standard for waterfront and pool-side installations.
Structural Bracing
Building frames, truss systems and tensile structures use turnbuckles to fine-tune member length after erection. The ability to make small adjustments without disassembly makes them valuable for bridge stays, tower guying and antenna support.
Wire Rope Rigging
In lifting, hoisting and load-securing operations, stainless steel turnbuckles provide adjustable tensioning for slings, guy wires and stay cables. They work alongside shackles, thimbles and wire rope clips in complete rigging assemblies.
Machinery and Equipment
Conveyor belt take-ups, screen tensioners, agricultural machinery and packaging equipment use smaller turnbuckles for belt tracking, spring return timing and component alignment.
Sizing, Thread and Load Considerations
When selecting a stainless steel turnbuckle, consider these factors:
- Take-up length: The amount of thread engagement determines how much adjustment range is available. Standard bodies provide roughly 6–10 inches of total take-up depending on diameter.
- Thread pitch: UNC (coarse) threads are standard for US-market turnbuckles. Metric threads are available for international project specifications.
- Body diameter: Larger diameters handle higher loads but require more space. Match the body size to your wire rope diameter or rod size.
- Working load: Always verify the manufacturer’s published working load limit (WLL) against your application requirements. Do not assume load ratings based on material grade alone.
Surface Finish and Maintenance
Stainless steel turnbuckles are typically supplied with one of two finishes:
- Polished (bright): Smooth, reflective surface common for visible architectural and marine applications. Easier to clean and inspect for surface defects.
- Pickled/passivated: Matte finish resulting from acid treatment to remove heat-tinted layers from forging. Provides maximum corrosion resistance for hidden or functional applications.
Periodic rinsing with fresh water removes accumulated salts in marine use. Avoid using carbon steel tools on stainless components to prevent iron contamination (rust staining).
B2B Sourcing Tips for Custom Metal Hardware Projects
When procuring stainless steel turnbuckles for industrial or commercial projects:
- Specify the correct grade – Request mill test reports (MTRs) if material traceability is required for your project documentation.
- Confirm end fitting style – Mismatched jaw/eye/hook configurations cause installation delays. Include connection drawings with your RFQ.
- Order with safety factor margin – For critical applications, select one size larger than the minimum calculated requirement.
- Consider custom fabrication – Non-standard lengths, special end fittings and branded markings are available through custom metal hardware suppliers like us for OEM and project-based orders.
We supply custom metal hardware solutions including stainless steel turnbuckles, wire rope clips, shackles and fabricated metal parts for industrial buyers worldwide. Contact our team to discuss your project requirements.
Frequently Asked Questions
Can stainless steel turnbuckles be used underwater?
Yes, Type 316 stainless steel is suitable for submerged marine applications. However, crevice corrosion can occur in low-oxygen stagnant water. Periodic inspection is recommended for permanently submerged installations.
What is the difference between a turnbuckle and a turnbuckle tensioner?
These terms refer to the same device. “Tensioner” emphasizes the function; “turnbuckle” describes the threaded body mechanism. Both terms are interchangeable in industrial contexts.
Do stainless steel turnbuckles need lubrication?
The threads should be lightly coated with anti-seize compound during assembly, especially for 316-grade units exposed to seawater. This prevents galling (cold welding of threads) during future adjustments.
Can you supply turnbuckles with custom branding?
Yes. Custom marking, laser engraving and color-coded identification options are available through our B2B sourcing service for OEM customers and project-based bulk orders. Contact us with your specifications.
